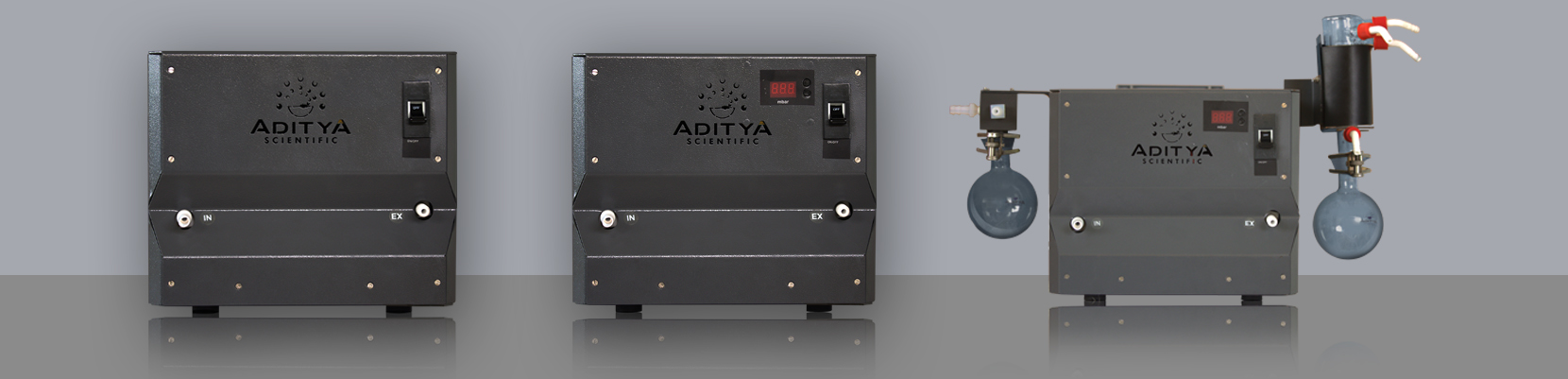

The AD2C-PRO-VCE Diaphragm Vacuum Pump by Aditya Scientific comes with a digital vacuum controller, inlet trap and exhaust condenser. Designed with precision and powered by a brushless DC motor, this pump guarantees an efficient and hassle-free evaporation process by providing meticulous control over vacuum parameters.
Our diaphragm pumps, tailored for chemistry applications, are your ultimate solution for continuous and oil-free pumping of corrosive gases and vapours. What sets them apart is their remarkable resistance to aggressive solvents and acidic vapours, making them not just efficient, but also environmentally conscious. The ingenious two-stage construction strikes the perfect balance between rapid pumping speed and achieving a low ultimate vacuum.
The PRO Series Diaphragm Vacuum Pump enhances the effectiveness and reproducibility of your vacuum processes. Its unique pressure reduction capability allows near-automatic distillation of gas mixtures, eliminating the need for fractionated operation. Serving as our flagship chemistry diaphragm pump, it remains a favoured choice at the core of ADITYA pumping systems. This new indigenous pump outshines its predecessors with improved performance data and superior vapour tolerance, solidifying its position as the prime option.
Outstanding chemical resistance and superior vapour tolerance: The diaphragm vacuum pump is built to withstand even the most aggressive chemicals and vapours, ensuring long-lasting performance.
High performance even at low vacuum levels: Experience consistent high performance, even when operating at low vacuum levels.
Ease of operation: Designed for user-friendliness, this diaphragm vacuum pump simplifies the processes for seamless operation.
Whisper quiet and low vibration: Say goodbye to noisy disruptions. The diaphragm vacuum pump operates quietly and with minimal vibration, creating a conducive work environment.
Long diaphragm life: With robust materials and smart engineering, this diaphragm vacuum pump boasts an extended diaphragm lifespan, reducing maintenance needs.
Maintenance-free drive system: Enjoy peace of mind with a drive system that requires minimal maintenance, saving you time and effort.
Incorporate the AD2C-PRO-VCE Diaphragm Vacuum Pump by Aditya Scientific into your operations, and witness elevated efficiency, reliability, and precision. Whether you're engaged in research, chemical processing, or any vacuum-dependent applications, this pump is the answer to your needs.
| TECHNICAL DATA | UNIT | AD 2C |
| Number of heads / stages | ----- | 2 |
| Max. pumping speed at 50 Hz | m3/h | 2.0 |
| Ultimate vacuum | mbar/torr | 9 / 7 |
| Ambient temperature range | °C | 10 - 40 |
| Max. back pressure (EX) (abs.) | bar | 1.1 |
| Inlet connection | mm | 10 |
| Outlet connection | mm | 10 |
| Type of motor | --- | BLDC |
| Rated motor power | watts DC | 240 |
| Dimensions (W x L x H) | mm | 280 x 217 x 240 |
| Weight | kg | 15 |
| Noise level | dBA | 45 |
| CE mark | ---- | Yes |
| Items supplied | ---- | Ready for use |
| ATEX (internal) | ---- | II 2G Ex h IIC T3 Gb |
| Integrated Digital Vacuum Controller | ---- | Yes |
| Integrated Inlet Trap & Exhaust Condenser | ---- | Yes |
