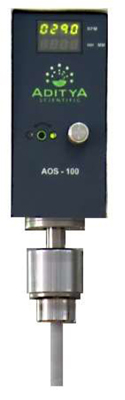

Aditya Scientific Overhead Stirrer AS-100 is a laboratory device which is used for mixing, homogenizing, suspending and recirculating large volumes of high-viscosity substances, which typically cannot be handled by a magnetic stirrer. Our overhead stirrers are suitable for simple lab stirring application as well as for stirring application in a jacketed reactor.
Aditya Scientific Overhead Stirrer AS-100 stands out due to its special features like digital display, stirring speed, torque and safety.
| Specifications | MODEL AS-100 |
| Power In/Out watt | 100/90 |
| Gears | 2 |
| Speed Range RPM | 10 - 1000 |
| Change of Direction | Yes |
| Rotation Speed Indicator | Digital |
| Speed Control | Electronic |
| Max. Torque | 300 Ncm |
| Overload Protection | Yes / Cut off |
| Motor Protection | Temperature Monitor Software |
| Max. Viscosity | 200000 mPas |
| Interface | RS485 (optional) |
| Max. Volume H₂O | 80 L |
| Duty Cycle | Continuous |
| Timer | Yes |
| Stirrer Shaft Max. Dia. | 10.5 mm |
| Dimension of Device | 70mm x 200mm x 120mm |
| >Support Rod Dimension | Ø12mm x 160mm |
| Protection Class | IP 54 |
| Electrical Supply | 230V AC / 50 Hz |
