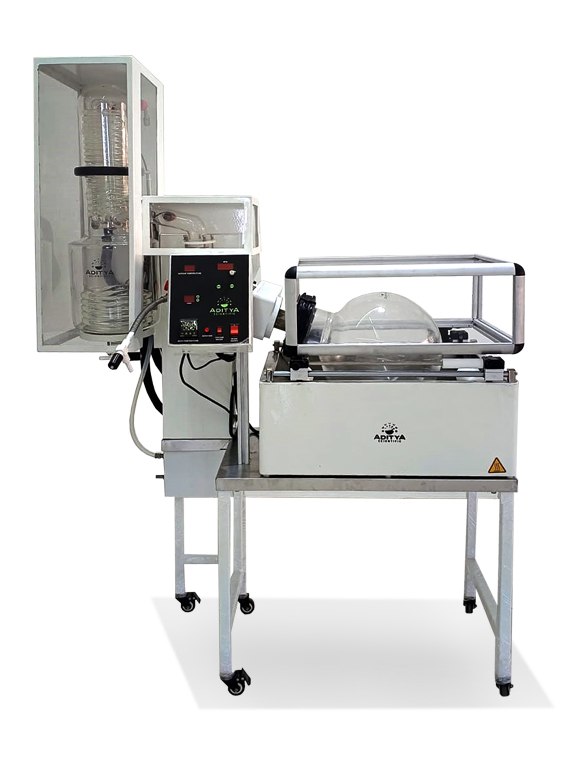

The Pilot Rotary Evaporator Model RE20-Dynamic introduces a new era of efficiency with its modified, compact design tailored for advanced laboratory applications. Exclusively available in a 20L capacity, The integrated receiver flask and condenser, coupled with a patented receiver flask featuring a cooling coil, optimize functionality and enhance user convenience.
The RE-20 Rotary Evaporator Dynamic offers precision control, enhanced safety features, and superior performance, ensuring consistent results for research, pharmaceutical, and chemical industries. This Rotary Evaporator is engineered for reliability and ease of operation, this cutting-edge solution is setting new standards for rotary evaporation systems.
| Description | RE-20 Rotary Evaporator Dynamic |
| Control Unit | |
| Operating Voltage (control unit) | 230 V 50/60 Hz |
| Vacuum valve (system) | Yes |
| Aerating valve (system) | Yes |
| Vacuum sensor | Yes |
| Automatic vacuum control mode | Yes (Digital Vacuum Controller) |
| Vapour temperature | Yes |
| Body Unit | |
| Dimensions (LxDxH) mm | 1300x700x1700 |
| Reflux system | Optional (On request) |
| Condenser Cooling Area | 1.5 sqm |
| Distillate flask | 20L x 1 no. |
| Receiver Flask | 10L x 1 no. (integrated with condenser) |
| Flask neck | Large core diameter (standard 120 mm) |
| Motor Unit | |
| Rotating Speed | 120 rpm |
| Electronic speed control | Yes |
| Electronic load control | Yes |
| Temperature safety switch | Yes |
| Slow acceleration mode | Yes |
| Bath | |
| Operating Voltage (bath) | 230 V 50 Hz |
| Heating element | 3 KW + (Spare 3KW) |
| MOC of heating bath | Stainless Steel |
| Heating bath | Insulated |
| Heating bath temp range | 20-100oC (option 20-180oC) |
| Over temperature limiter (heating element) | Yes |
| Adjustable over temperature thermostat | Yes |
| Electronic temperature thermostat | Yes |
| Sealing System | |
| Sealing system vacuum stability | Ultimate vacuum (system empty) better than 1 mbar |
| Life expectancy (sealing system) | Approx. 20,000 running hours |
| Warranty (sealing system) | 3 Years |
